Feed Through Wire Electrical Terminal Block 1.5mm 1 Input 2 Output Push In Terminals

Name: Feed Through Wire Electrical Terminal Block 15mm 1 Input 2 Output Push In Terminals
Brand: WONKEDQ，WKDQ
Price: 1 USD

China Feed Through Wire Electrical Terminal Block 1.5mm 1 Input 2 Output Push In Terminals wholesale

Brand Name : WONKEDQ，WKDQ

Model Number : JPT 1.5/S-TWIN

Certification : CE/RoHS/CQC/ISO 9001

Place of Origin : China

MOQ : 100pcs

Payment Terms : T/T, Paypal, Western Union, etc

Delivery Time : 2-7 days

Packaging Details : box

Model No. : JPT 1.5/S-TWIN

Color : Grey, Blue, other color can be customized

Connection method : Push-in connection

Country of origin : China

Standard : IEC 60947-7-1

Material : Flame resistant Nylon PA66 V0

Contact Now

JPT 1.5TWIN 1 Input 2 output Push in terminals

JPT 1.5-TWIN Connection Feed Through Wire Terminal Blocks 1.5mm 1 Input 2 output Push in terminals

DESCRIPTION:

The green-yellow feed-through terminal block JPT 2,5-TWIN-PE a cross section of 0.14 mm² - 4 mm² (AWG: 26 - 12) and a width of 5.2 mm has 3 connections on one level. The compact design of the ground terminal block and the direct push-in connection enables easy and tool-free wiring of wiring of the terminal block JPT 2,5-TWIN-PE in a small amount of space. Conductors with ferrules or solid conductors are inserted into the conductor channel. The contact spring opens automatically and provides the required pressure force against the current bar. The terminal block JPT 2,5-TWIN-PE can be universally used for wiring of control cabinets and distributors.

Technical Parameters

Model No.	JPT 1.5/S-TWIN
Color	Grey, Blue, other color can be customized
Length/Height/Wide (mm)	54/30.5/3.5
Connection method	Push-in connection
Material	Flame resistant Nylon PA66 V0
Rated Voltage/Current	500V/17.5A
Cross section, solid/soft Cable	0.14-1.5mm²/0.14-1.5mm²
Conductor Size	26-16 AWG
Mounting Type	DIN Rail NS 35
Standard	IEC 60947-7-1
LOGO	WonkeDQ, LOGO can be customized
Packing Detail	5.09g/pc, 100PCS/BOX
Certification	CE/RoHS/CQC/ISO 9001

Feed Through Wire Electrical Terminal Block 1.5mm 1 Input 2 Output Push In Terminals

Product Tags:

push fit terminal block connector

push fit terminal block

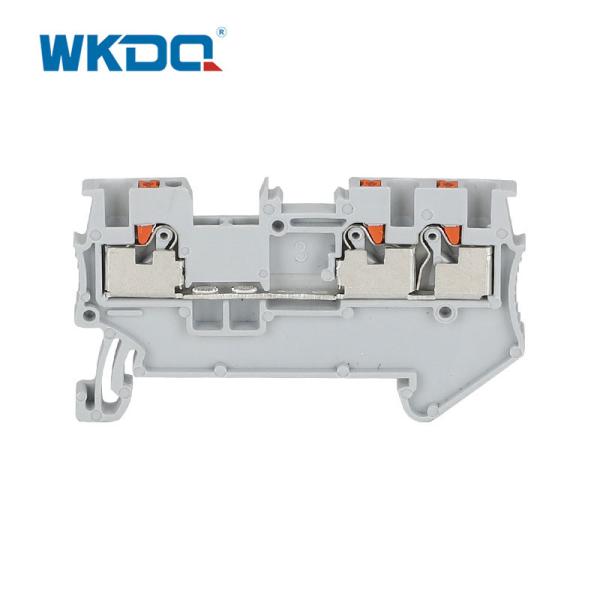

Feed Through Wire Electrical Terminal Block 1.5mm 1 Input 2 Output Push In Terminals Images
