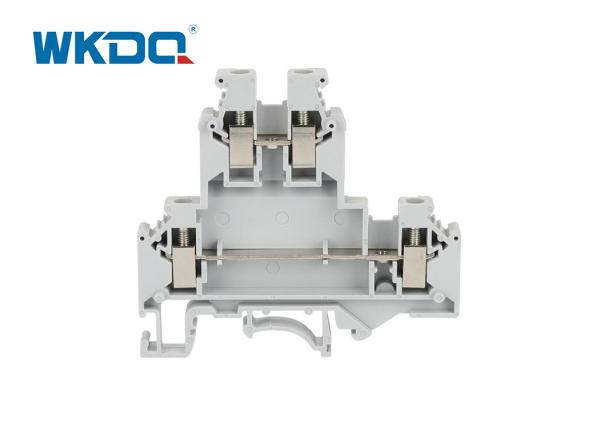

JUKK 5 Installation Electrical Screw Terminal Block , Wiring Barrier Terminal Blocks Flame Retardant
1. DESCRIPTION
There are many applications that use terminal blocks & barrier strips. Screw-type terminals are often used in order to connect a chassis ground, like on a surge protector.
Several public address systems use them for speakers and other inputs and outputs. Screw terminals are very widely used in electricity wiring, to connect switches, and for connecting major appliances to plugs at home.
The multi levels terminal blocks allow you to increase wiring density-even when space is limited, fixed bridge and test sockets can be used on both levels. Space saving thanks to compact design.
Made from Inflaming retarding PA 66 & nickle plated brass metal.
An excellent vibration proof protection against loosening.
Stable and low contact resistance.
Space-saving and time-saving design.
Perfectly suitable for electrical machine control systems
All types of materials are guaranteed in quality.
Inflaming retarding plastic,plated copper connection bar.
Easy mounting and dismounting from the DIN Rail.
Reduce the installation and make the faster wiring.
There are several different kinds of terminal blocks & barrier strips at WonkeDQ. We stock many of the most common types.
2.TECHNICAL PARAMETERS
| Part No. | JUKK 5, Multi Levels Terminal Blocks |
| Color | Grey, Blue, other color can be customized |
| Length/Height/Wide (mm) | 57/62/6.2 |
| Connection method | Screw connection |
| Material | Nylon PA66 |
| Rated Voltage/Current | 500V/32A |
| Cross section, solid/soft Cable | 0.2-4 mm² / 0.2-4 mm² |
| Conductor Size | 24-12 AWG |
| Mounting Type | NS 35/7.5 |
| Standard | IEC 60947-7-1 |
| LOGO | Customized logo are supported |
| Packing Detail | 13.66g/pc, 50PCS/BOX, 2000PCS/CTN |
| Certification | CE/RoHS/CQC/ISO 9001 |
